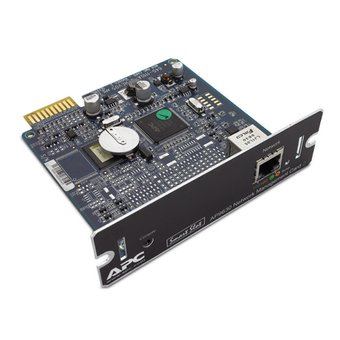

APC UPS Network Management Card 2

UPS Network Management Cards Features & Benefits Marketing features Remote device management Enable management of your UPS by connecting it directly to the network.

Fault notification Real-time event notification minimizes response times to critical physical infrastructure situations.

Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.

Protection Radius support Use an existing radius server to securely authenticate, authorize, and account for your APC device.

Password Security User-selectable password with strong password rules and reset password mechanism.

Network Shutdown Reliable network-based shutdown of multiple servers Multi-tier user access Supports up to four access levels – Administrator, Device User, Read-Only User and Network-only User – with user name and password requirements.

Availability Reboot equipment remotely Saves dispatching technicians to remote locations.

Total cost of Ownership Flash upgradeable firmware Install maintenance releases of firmware remotely using FTP.

Browser Accessible View the user interface with a browser.

Provides quick access from anywhere on a secure network.

Manageability Notification Be notified of problems to ensure crucial situations are dealt with in a timely manner.

Enterprise management system compatible Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network Data logging Identify problematic trends before they escalate or export the data log for analysis.

Event logging Pinpoint the timing and sequence of events leading up to an incident with the event log.

Scheduled shutdown and reboot Customize shut down and reboot of connected equipment and UPSs.

Communications & Management Authentication Radius Physical Maximum Height 38MM, 3.8CM Maximum Width 121MM, 12.1CM Maximum Depth 114MM, 11.4CM Net Weight 0.08KG Shipping weight 0.34KG Shipping Height 51MM, 5.1CM Shipping Width 235MM, 23.5CM Shipping Depth 159MM, 15.9CM Color Black Environmental Operating Temperature 0 – 45 °C Operating Relative Humidity 0 – 95 % Operating Elevation 0 – 3048meters Storage Temperature -5 – 45 °C Storage Relative Humidity 0 – 95 % Storage Elevation 0 – 15240meters Conformance Approvals AS/NZS 3548 (C-Tick) class A, EN 55022 class A, EN 55024, FCC part 15 class A, GOST, ICES-003, VCCI class A Standard warranty 2 years repair or replace Sustainable Offer Status RoHS Compliant Nationwide Onsite Maintenance is as easy as saying Bronze, Silver, Gold, Platinum.

1: Plug and Play (400VA-3kVA) – Extended Warranty Contracts and Maintenance contracts For plug & play UPS Critical Power offers you a full range of distributed service packs.

These competitively priced turn-key solutions optimize your UPS performances and enhance the availability of your equipment while meeting your financial constraints and technical requirements.

Warranty Plus Extends your standard warranty up to 6 years, next working day replacement* with labour or without.

Intervention, Provides one preventative maintenance visit, planned visit inside our outside hours.

Battery Plus, Provides replacement batteries to site, next working day replacement or same day 2: Hardwired (4kVA Upwards including Three Phase UPS) – Maintenance Contracts No matter what, your UPS, Generator, Cooling, Switchgear or Electrical Hardware must be ready to perform at all times.

While every power solution we supply is backed-up by a comprehensive warranty with the manufacturer, maintenance plans to ensure business continuity are highly recommended, particularly for UPS systems from 4kVA.

In particular, the battery set is of prime importance, and must be in good working order.

With other consumables, such as fans and DC capacitors requiring regular maintenance and inspection logs reviewed to predict potential future problems.

Services Included Silver Level Gold Level Platinum Level Platinum Plus Technical Hotline 24/7 Yes Yes Yes Yes Preventative Maintenance Yes Yes Yes Yes Remote Monitoring 24/7 Yes Yes Yes Yes Firmware Upgrades Yes Yes Yes Yes Emergency Response Yes Yes Yes Yes Labour Yes Yes Yes Yes Parts Yes Yes Yes option Monthly Event/Status Report option option option option Onsite Crash Kit option option option onsite Response Time 12 working hours 8 working hours 4 clock hours 4 clock hours Guaranteed Fix time – – – 4 Clock hours 3: 24×7 Remote Monitoring Contracts – Remote monitoring of UPS, Generators, Air Conditioning, Site Access and Environmental Systems is essential to allow swift offsite investigation of fault reports and real-time monitoring of the site status, allowing the correct response to be created and dispatched to site.

Engineer Installation and configuration during normal hours 24×7 flexible status and remote monitoring.

Encrypted communication, allowing safe offsite monitoring Alarms and events emailed and SMS texted automatically Firewall Friendly Cloud based status overview and multiple sites status on one screen Allows First Fix Response to Site 4.

IR Thermal Imaging Surveys – Infrared electrical inspection.

Infrared electrical testing finds hot, dangerous problems quickly.

Infrared electrical inspections find hot spots caused by defects in connections and components. – Contact us for more information.

Detect system overloads, loose defective components and damaged switchgear.

Infrared electrical testing finds hot, dangerous problems quickly.

Infrared electrical inspections find hot spots caused by defects in connections and components.

Infrared thermography is used to find areas of excess heat (caused by increased resistance) so that problems can be corrected before a component fails, causing damage to the component, creating safety hazards and productivity loss.

Because increased heating is a sign of failure, infrared is the best diagnostic tool available for finding these hot connections in the early stages of degeneration.

5.

Switchgear – Contact us for more information.

Switchgear maintenance is essential for efficient save plant operation and prolonged life span in the field Switchgear should be maintained as follows.

Live Maintenance – Unintrusive and consists of taking metering values, carrying out visual inspections and a thermal imaging survey of the switchboard.

This is recommended to be carried out yearly.

Breaker Maintenance – Switchboard would need to be Isolated and all ACB’s and MCCB’s are maintained including visual and mechanical checks, greasing and secondary injection testing of the trip units.

This is recommended to be carried out every 2 years.

Full Isolated Maintenance – Switchboard would need to be fully isolated from upstream supplies (HV).

Breakers are maintained as per the above but also full maintenance carried out of the Switchboard to clean all compartments and carry out tightness checking of busbars and terminations etc.

This is recommended to be carried out every 4 years.

Network Management Card 2 for Symmetra® PX Release Notes Security Handbook Network Enabled Devices AOS v7.X UPS Network Management Card 2 - Release Notes, v7.0.4 UPS Network Management Card 2 - Installation Guide MIB Reference Guide (Online Guide) UPS Network Management Card 2 - User Guide v6.8.x UPS Network Management Card 2 - Installation Guide UPS Network Management Cards : Installing Multiple Management Cards (Manual Addendum) UPS Network Management Card 2 - User Guide v6.7.x
