Critical Power Supplies

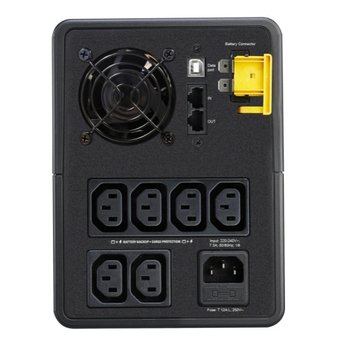

APC Back-UPS 1600VA, 230V, AVR, IEC Sockets - BX1600MI
APC

APC Back-UPS 1600VA, 230V, AVR, IEC Sockets

SKU BX1600MI
£152.77 ex VAT
£183.32 inc VAT

Back-UPS Features & Benefits Safety Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Marketing features Battery-protected and surge-only outlets Reserves power capacity and run t

Description

Back-UPS Features & Benefits Safety Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Marketing features Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment Protection Surge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes .

Availability Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.

Manageability LED status display Quickly understand unit and power status with visual indicators.

Audible alarms Provides notification of changing utility power and UPS power conditions

Specifications

Specifications
Output Max Configurable Power (Watts)
900 Watts / 1.6kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1
Hz Sync to mains Topology Line interactive Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical 10 ms maximum
Input Input frequency
50/60 Hz +/- 5
Hz Auto-sensing Input voltage range for main operations
140 – 300V
Number of Power Cords
1
Input Power Factor at Full Load
0.56 Batteries &
Runtime Battery type Lead-acid battery Typical recharge time
8hour(s)
Nominal Battery Voltage
24 V
Expected Battery Life (years)
3 – 5
Battery Volt-Amp-Hour Capacity
168
Runtime View Runtime Graph Efficiency View Efficiency Graph Communications
&
Management Interface
Port(s)
USB
Control
panel
LED
Status display with on line
: on battery
Audible Alarm Alarm when on battery
: distinctive low battery alarm
Surge Protection and Filtering Surge energy rating
273Joules
Data Line Protection RJ45
10/100/1000
Base-T Ethernet protection Physical Maximum Height
190MM, 19.0CM
Maximum Width
140MM, 14.0CM
Maximum Depth
390MM, 39.0CM
Net Weight
10.3KG
Shipping weight
11.3KG
Shipping Height
190MM, 19.0CM
Shipping Width
140MM, 14.0CM
Shipping Depth
390MM, 39.0CM
Color
Black
SCC
Codes
10731304410826
Environmental Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 3000meters
Audible noise at
1 meter from surface of unit 40.0dBA
Protection
Class
IP20
Conformance Approvals CB
, CE, EAC,
EN/IEC
62040-1,
EN/IEC
62040-2
Equipment protection policy Lifetime
: 50000 euros
Standard warranty
2 years repair or replace
Sustainable Offer Status RoHS Compliant
| Output |
Max Configurable Power (Watts)
| 900 Watts / 1.6kVA |
Output Frequency (sync to mains)
| 50/60 Hz +/- 1
Hz Sync to mains
| Topology |
Line interactive
|
Waveform type
|
Stepped approximation to a sinewave
|
Transfer Time
| 6 ms typical : 10 ms maximum | Input |
Input frequency
| 50/60 Hz +/- 5
Hz Auto-sensing
|
Input voltage range for main operations
| 140 – 300V |
Number of Power Cords
| 1 |
Input Power Factor at Full Load
| 0.56 | Batteries & Runtime |
Battery type
|
Lead-acid battery
|
Typical recharge time
| 8hour(s) |
Nominal Battery Voltage
| 24 V |
Expected Battery Life (years)
| 3 – 5 |
Battery Volt-Amp-Hour Capacity
| 168 | Runtime |
View Runtime Graph
| Efficiency |
View Efficiency Graph
| Communications & Management |
Interface
Port(s) | USB |
Control panel
|
LED
Status display with on line
: on battery |
Audible Alarm
|
Alarm when on battery
: distinctive low battery alarm |
Surge Protection and Filtering
|
Surge energy rating
| 273Joules |
Data Line Protection
|
RJ45
10/100/1000
Base-T Ethernet protection
| Physical |
Maximum Height
| 190MM, 19.0CM |
Maximum Width
| 140MM, 14.0CM |
Maximum Depth
| 390MM, 39.0CM |
Net Weight
| 10.3KG |
Shipping weight
| 11.3KG |
Shipping Height
| 190MM, 19.0CM |
Shipping Width
| 140MM, 14.0CM |
Shipping Depth
| 390MM, 39.0CM | Color | Black |
SCC
Codes
| 10731304410826 | Environmental |
Operating Temperature
| 0 – 40 °C |
Operating Relative Humidity
| 0 – 95 (Non-condensing) % |
Operating Elevation
| 0 – 3000meters |
Storage Temperature
| -15 – 40 °C |
Storage Relative Humidity
| 0 – 95 (Non-condensing) % |
Storage Elevation
| 0 – 3000meters |
Audible noise at
1 meter from surface of unit | 40.0dBA |
Protection Class
| IP20 | Conformance | Approvals | CB , CE, EAC,
EN/IEC
62040-1,
EN/IEC
62040-2 |
Equipment protection policy
| Lifetime : 50000 euros |
Standard warranty
| 2 years repair or replace |
Sustainable Offer Status
| RoHS | Compliant
Waveform type | Stepped approximation to a sinewave
Transfer Time
| 6 ms typical 10 ms maximum
Interface Port(s) | USB
Control panel
|
LED
Status display with on line on
battery
Interface Port(s) | USB
Audible Alarm
|
Alarm when on battery distinctive low battery
alarm
Approvals | CB , CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2
Equipment protection policy
|
Lifetime
50000 euros
Waveform type | Stepped approximation to a sinewave
Transfer Time
| 6 ms typical 10 ms maximum
Interface Port(s) | USB
Control panel
|
LED
Status display with on line on
battery
Interface Port(s) | USB
Audible Alarm
|
Alarm when on battery distinctive low battery
alarm
Approvals | CB , CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2
Equipment protection policy
|
Lifetime
50000 euros

Technical resources
