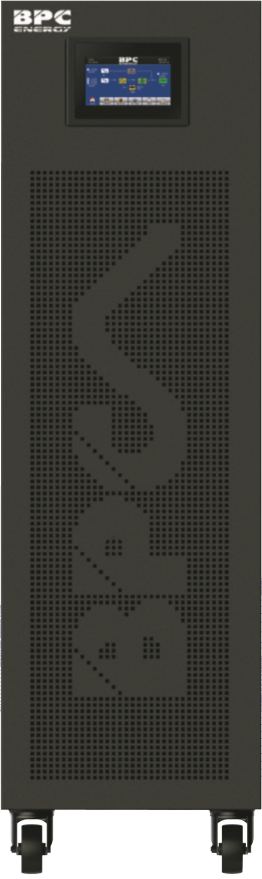

BPC Energy PowerPrime Three Phase Series 10-60kVA UPS

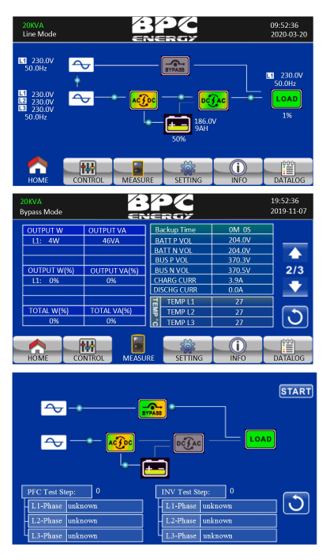

ADVANCED TOUCH SCREEN WITH LCD DISPLAY PowerPrime UPS have an advanced colour touch 5 inch screen providing precise LCD displays with real time mimic status and parameter readings via the intelligent Digital Signal Processor (DSP) controller.

Touch either of the control, measure, setting, information or data log sub menu icons to enter into various sub screens.

DUAL FEED INPUT (UP TO 40KVA) The PowerPrime Dual Feed Input design increases the levels of reliability and availability of the UPS system which is more commonly found in larger systems.

Dependability is ensured by providing from the same source a secondary path for the bypass supply to eliminate the risk of any problems with the incoming rectifier input.

This superior protection allows the load to be supplied directly from the mains power source.

MULTIPLE COMMUNICATION OPTIONS The USB communication port can be used to locally monitor the UPS system.

Internal slot is provided for SNMP communication.

8 output dry ports and 6 input dry ports are provided as standard to allow further communication with UPS.

PARALLEL READY The BPC philosophy is both simple and elegant with each model provided parallel ready.

The UPS can be connected together without any requirement to install further control circuits into the UPS system.

BPC would always recommend installing one of our parallel switch panels to provide correct cable protection and aid all ongoing maintenance.

Models can be used in simple parallel operation with up to 4 units, allowing scalability for increased power capacity and improved reliability due to the redundancy operation.

LONGER RUNTIME APPLICATIONS For mission critical applications requiring longer runtimes or higher specification batteries, PowerPrime UPS employ an internal intelligent charging system with up to 12 Amps (18A on 60kVA model) configured by the front touch screen.

Additional matching battery cabinets can easily be added and have been designed both technically and aesthetically to complement the UPS, forming a combined unit which can be easily positioned.

EXTERNAL MAINTENANCE BYPASS SWITCH CONNECTION The PowerPrime system has an easy connection port for direct interface to an EMBS (External Maintenance Bypass Switch).

This connection allows a fast communication with the internal static switch should the EMBS be closed when the UPS is operating on inverter.

The EMBS connection provides security against the external switchgear being operated incorrectly.

This feature helps to protect the UPS during all operations.

INPUT CONFIGURATION The PowerPrime 10kVA and 20kVA single phase output models have configurable input terminal connections and is provided with multifunctional jumpers to allow either single phase or three phase input connections.

All PowerPrime models are fitted with large connection terminals and secure gland plates to allow secure cable connection to the UPS.

SMART BATTERY MANAGEMENT Intelligent battery management combined with exceptional 95.5% DC/AC inverter efficiency means that PowerPrime battery sizing is optimised and greater runtimes are achieved.

Maximum battery care is maintained by a three level charging system to achieve the best performance and operating life possible.

Unique self learning function predicts more accurate backup autonomy and improves the information for the user.

True On Line Double Conversion 1/1, 1/3, 3/3 configuration depending on model Advanced touch screen display High AC/AC efficiency up to 96.6% Intelligent event history / 500 alarm logs Unity output power factor Wide input voltage (100V 300V) Smart battery management Larger internal charger for long runtimes Parallelable up to 4 units as standard Standard dual feed configuration Adjustable internal battery voltage Digital signal (DSP) technology Multiple communication ports ECO mode operation for energy saving Matching battery cabinets CONFIGURABLE BATTERY VOLTAGE The 20kVA models and above have the flexibility to configure battery voltages.

Internal battery options usually have either 32 (16+16) pcs or 40 (20+20) pcs that can be configured with matching battery cabinets.

Depending on application and runtime requirements, external batteries can be configured with battery variations from 32 (16+16) pcs to 40 (20+20) pcs.

COMPACT DESIGN The PowerPrime system offers one of the smallest footprints available on the market, providing exceptional power density of 156KW/m³ at 40kVA/40kW capacity with battery in one cabinet, for the ever space conscious IT manager.

WIDE INPUT VOLTAGE Part of the unique design of the PowerPrime is to improve the performance in extreme site conditions with a wide input voltage window, ranging from 110 Volts up to 300 Volts, without the need for the system to transfer into Battery Mode, thus not only improving the efficiency of the system, but also maximising the life of the battery.
