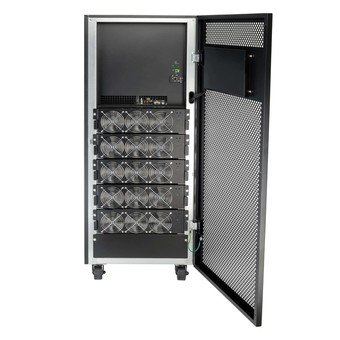

Tripp Lite SmartOnline S3MX Series 3-Phase 380/400/417V 160kVA 164kW On-Line Double-Conversion UPS, Parallel for Capacity and Redundancy, Single & Dual AC Input

Battery Backup and VFI Operation Protect Critical LoadsThe SmartOnline® S3M160KXD IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that’s easy to manage and inexpensive to operate.

Sophisticated voltage and frequency independentoperation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality.

Providing up to 160kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and light industrial environments.Best-in-Class Footprint for Easy Integration into Your Network ApplicationThis on-line double-conversion UPS system has a very small footprint of just 0.56 square meters.

It requires less valuable space in your data center, and you can install it in spaces that would previously have required expensive retrofitting.Efficient Operation and Design Reduces Cost of OwnershipThis IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings.

It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs.

A low THDiimproves generator compatibility.

A low THDvand active power factor correction improve output performance.

The hardware and firmware platform design reduces the number of unique boards, improving mean time to repairand resulting in reduced downtime.

Built-in static and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.External Batteries Supply Reliable Backup with Expandable Runtime OptionsThe S3M160KXD uses external scalable battery cabinets, such as BP480V65 and BP480V100 , to provide up to three hours of backup support in case of a power failure.

Add the optional TEMPC100200 thermostat kit to enable temperature-compensated charging for optimized battery lifespan.

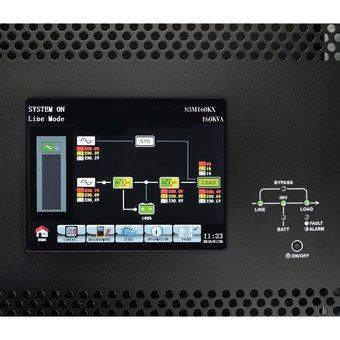

The UPS system automatically restarts after a lengthy power outage.Intuitive Color Touchscreen Display Delivers Important Performance Information at a GlanceThe largefront-panel color interface enables comprehensive local monitoring and control capability.

It displays critical operating conditions and diagnostic data, such as phase load levels, available runtime, alarm status, battery charge, and voltage and frequency values.

Six LEDs indicate bypass, on-line, inverter, battery, load and alarm/fault modes.Network Management Card Offers Remote Monitoring and ControlThe optional WEBCARDLXwith the latest version of PowerAlert Device Manager firmwareprovides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences.

The PADM20 upgrade and Tripp Lite’s PowerAlert Element Managersoftware form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.

Auto Probe allows a UPS with switched loads to automatically reboot devices if a network communication failure is detected.

This preserves uptime and imizes the time and expense associated with on-site support.Parallel Capability Provides Additional CapacityConnect two S3M160KXD units in parallel using separate/shared battery cabinets for increased capacity and fault tolerance .2-Year Warranty Provides Peace of dThe S3M160KXD is backed by a 2-year warranty, ensuring reliability and performance.
